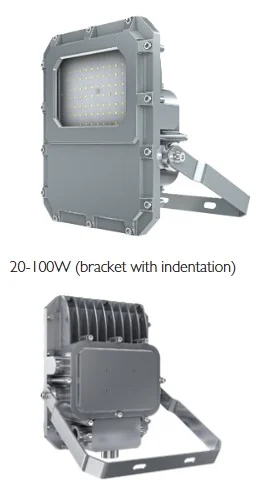

ATEX explosion proof LED lights 100 Watt, 13000lm, 40°/ 60°/ 90°/ 120°, IP67, 2200K-7000K

Name: ATEX explosion proof LED lights 100 Watt, 13000lm, 40°/ 60°/ 90°/ 120°, IP67, 2200K-7000K
Brand: JNLED
SKU: JNFL-ATEX-FSeries1 (100W)

SKU JNFL-ATEX-FSeries1 (100W)

Explosion-proof LED lighting solution certified for hazardous locations

Luminous flux

13,000 lm

Power consumption

100 W

Beam angle

40°, 60°, 90°, 120°

IP rating

IP67

Project pricing on request

Volume, vessel class and coating affect price.

Spec sheet (PDF) or get in touch

Specification

Technical specification

Power consumption: 100 W
Luminous flux: 13,000 lm
Efficacy: 140 lm/W
Colour temperature: 2200K-7000K
Colour rendering (CRI): >70
Beam angle: 40°, 60°, 90°, 120°
IP rating: IP67
IK rating: IK07 (without wire guard) · IK09 (with wire guard)
Input Voltage: AC120-277V, 50/60Hz, DC36V
Dimming: 0-10V (optional)

Show all 32 specificationsShow fewer

Input Frequency: 50/ 60Hz
LED type: Philips LUMILEDs 3030 or 5050
Power Factor (PF): >0.95
Housing colour: Grey
Housing material: Copper free aluminium, tempered glass
Warranty: 5 years
ATEX standard: Flame-proof type: Gas: II 2 G Ex db IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°...120°C Db IP66; Flame-proof and increased safe type: Gas: II 2 G Ex db eb IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°C...120°C Db IP66
IECEx standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db
UL standard: Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G
Retilap standard: Esquema 5 RETILAP
Fixture shape: Rectangular
Fixture height (mm): 98 mm
Fixture width (mm): 270 mm
Fixture length (mm): 318 mm
Net weight: 8.5 kg
Temperature Class: T6
Gas group: IIC
Protection type: Ex eb mb
Zone classification: Zone 1 & 2
Operating temperature: -20°C to +45°C
Working humidity range: 10-95% RH
Lifetime: 80,000 hours
