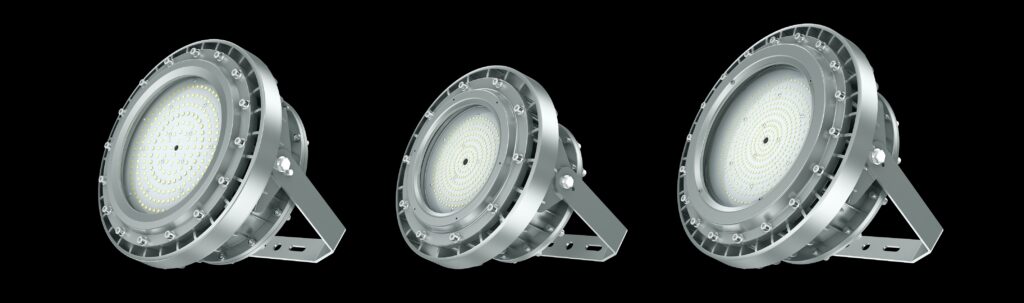

ATEX explosion proof LED lights 100 Watt, 8400lm, 40°/ 60°/ 90°/ 120°, IP66, 2200K-7000K
SKU JNHB-ATEXCSeries1 (100W)
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, wall mounting with junction box (90°)
Luminous flux
8,400 lm
Power consumption
100 W
Beam angle
40°, 60°, 90°, 120°
IP rating
IP66
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 100 W
- Luminous flux
- 8,400 lm
- Efficacy
- 140 lm/W
- Colour temperature
- 2200K-7000K
- Colour rendering (CRI)
- >70
- Beam angle
- 40°, 60°, 90°, 120°
- IP rating
- IP66
- IK rating
- IK08 (Glass cover) · IK10 (with Wire Guard)
- Input Voltage
- 120-277/ 150-250VAC/ 12-48VDC
- Dimming
- Non-dimmable
Show all 32 specificationsShow fewer
- Input Frequency
- 50/ 60Hz
- LED type
- SMD
- Power Factor (PF)
- >0.95
- Housing colour
- Grey
- Housing material
- Copper free aluminium, tempered glass
- Warranty
- 5 years
- ATEX standard
- II 2 G Ex db llB T6...T3 Gb, II 2 D Ex tb IIC T80°C...T195°C Db
- IECEx standard
- Ex db lIB T6...T3 Gb, Ex tb IIIC T80°C...T195°C Db
- UL standard
- Class I, Division 2, Groups C, D/ Class I, Division 1, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III
- Retilap standard
- Esquema 5 RETILAP
- Fixture shape
- Round
- Fixture height (mm)
- 254 mm
- Fixture width (mm)
- 270 mm
- Fixture length (mm)
- 406 mm
- Net weight
- 14 kg
- Temperature Class
- T6
- Gas group
- IIC
- Protection type
- Ex eb mb
- Zone classification
- Zone 1 & 2
- Operating temperature
- -20°C to +45°C
- Working humidity range
- 10-95% RH
- Lifetime
- 80,000 hours
Packaging & shipping
- Product dimensions
- 254×270×406 mm
- Net weight
- 14 kg
- Export carton dimensions
- 479 × 470 × 345 mm
- Export carton gross weight
- 16 kg
- Products per carton
- 1
Shipping volume
Enter a quantity to size the shipment.
- Cartons
- —
- Total volume
- —
- Total gross weight
- —
- Carton size
- 479 × 470 × 345 mm
Export carton figures. Volume and weight are counted in whole cartons, which is how a freight quote is priced.
Performance
8,400 lm
TOTAL OUTPUT
100 W
POWER DRAW
140
EFFICACY
