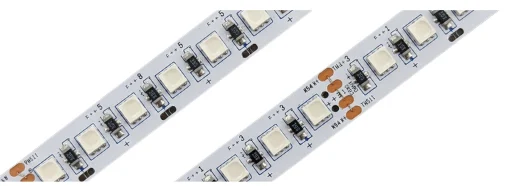

3528 RGB 120 LED/m | 3528 SMD 120LED/m 24V 6W/m Red
SKU JNB120210-3528-RGB
3528 RGB 120 LED/m | 3528 SMD: 120 3528 SMD LEDs/m, 6W/m, 24V, Red. Available in IP20. Mini 3528 in 1 RGB SMD; high density
Luminous flux
529.2 lm/m
Power consumption
6 W/m
Input Voltage
24V DC
IP rating
IP20
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 6W/m
- Luminous flux
- 529.2 lm/m
- Efficacy
- 21.6 lm/W
- Colour temperature
- Red
- Colour rendering (CRI)
- 80+
- Beam angle
- 120°
- IP rating
- IP20
- Input Voltage
- 24V DC
- LED type
- 3528 SMD
- Lifetime
- 50,000 hours
Show all 20 specificationsShow fewer
- Form Factor
- 10mm
- LED Quantity Per Meter
- 120
- Strip Width (mm)
- 10
- Colour Range
- 460-470nm
- Cut Point (mm)
- 50mm
- PCB Width (mm)
- 10mm
- Input Current Per Meter
- 0.25A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x10 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
529.2 lm/m
TOTAL OUTPUT
6W/m
POWER DRAW
21.6
EFFICACY
