Dual White 96 LED/m | 5050 SMD 96LED/m 24V 23W/m Mix 4000K
SKU JN96212-CCT-Mix

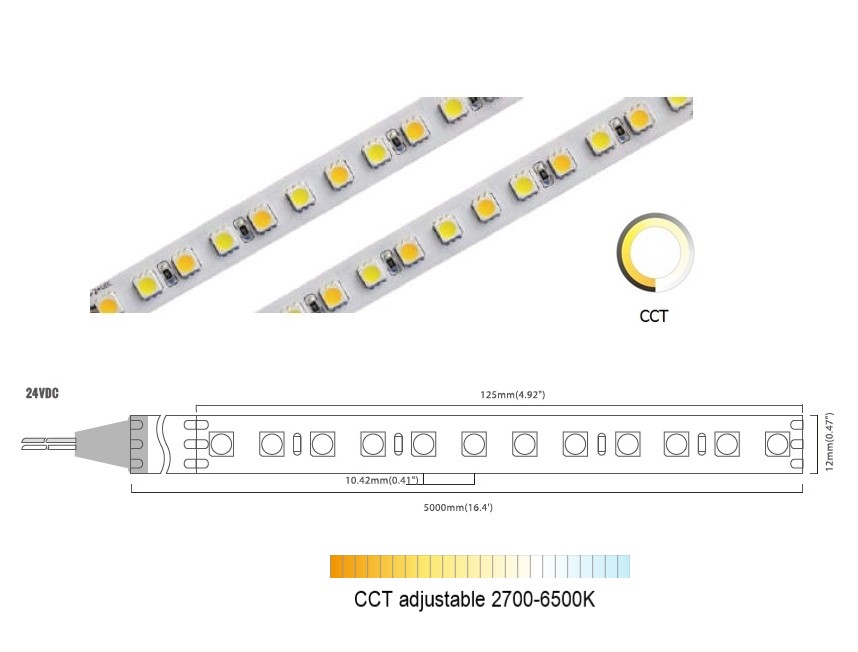

Dual White 96 LED/m | 5050 SMD: 96 5050 SMD LEDs/m, 23W/m, 24V, Mix 4000K. Available in IP20. High Density 96 LEDs single line
Luminous flux
1,932 lm/m
Power consumption
23 W/m
Colour temperature
Mix 4000K
IP rating
IP20
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 23W/m
- Luminous flux
- 1932 lm/m
- Efficacy
- 83 lm/W
- Colour temperature
- Mix 4000K
- Colour rendering (CRI)
- Ra>90,Ra>95
- Beam angle
- 120°
- IP rating
- IP20
- Input Voltage
- 24V DC
- LED type
- 5050 SMD
- Lifetime
- 50,000 hours
Show all 19 specificationsShow fewer
- Form Factor
- 12mm
- LED Quantity Per Meter
- 96
- Strip Width (mm)
- 12
- Cut Point (mm)
- 125mm
- PCB Width (mm)
- 12mm
- Input Current Per Meter
- 0.96A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x12 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
1932 lm/m
TOTAL OUTPUT
23W/m
POWER DRAW
83
EFFICACY
