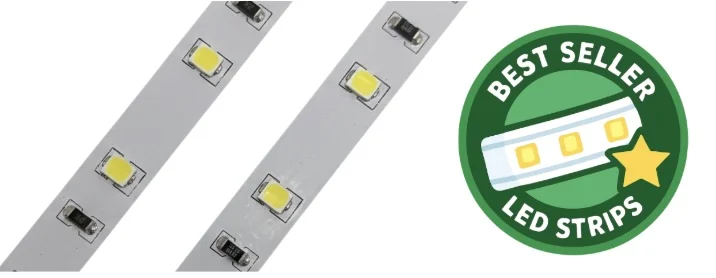

2835 Series 60 LED/m | 2835 SMD (variant 12V) 60LED/m 12V 13W/m 2700K
SKU JN60110-27
2835 Series 60 LED/m | 2835 SMD (variant 12V): 60 2835 SMD LEDs/m, 13W/m, 12V, 2700K. Available in IP20. 60110 variant on 12V
Luminous flux
1,170 lm/m
Power consumption
13 W/m
Colour temperature
2700 K
IP rating
IP20
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 13W/m
- Luminous flux
- 1170 lm/m
- Efficacy
- 90 lm/W
- Colour temperature
- 2700K
- Colour rendering (CRI)
- Ra>90,Ra>95
- Beam angle
- 120°
- IP rating
- IP20
- Input Voltage
- 12V DC
- LED type
- 2835 SMD
- Lifetime
- 50,000 hours
Show all 19 specificationsShow fewer
- Form Factor
- 8mm
- LED Quantity Per Meter
- 60
- Strip Width (mm)
- 8
- Cut Point (mm)
- 50mm
- PCB Width (mm)
- 8mm
- Input Current Per Meter
- 1.08A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x8 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
1170 lm/m
TOTAL OUTPUT
13W/m
POWER DRAW
90
EFFICACY
