2835 Series 280 LED/m | 2835 SMD (Dual Row) 280LED/m 24V 32W/m 2700K
SKU JN280220-27

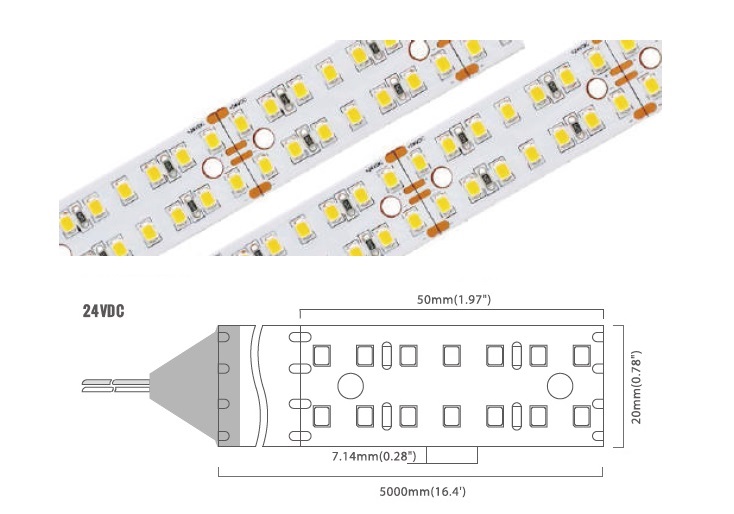

2835 Series 280 LED/m | 2835 SMD (Dual Row): 280 2835 SMD LEDs/m, 32W/m, 24V, 2700K. Available in IP20. 20mm PCB; dual row
Luminous flux
3,680 lm/m
Power consumption
32 W/m
Colour temperature
2700 K
IP rating
IP20
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 32W/m
- Luminous flux
- 3680 lm/m
- Efficacy
- 115 lm/W
- Colour temperature
- 2700K
- Colour rendering (CRI)
- 80+
- Beam angle
- 120°
- IP rating
- IP20
- Input Voltage
- 24V DC
- LED type
- 2835 SMD
- Lifetime
- 50,000 hours
Show all 19 specificationsShow fewer
- Form Factor
- 20mm
- LED Quantity Per Meter
- 280
- Strip Width (mm)
- 20
- Cut Point (mm)
- 50mm
- PCB Width (mm)
- 20mm
- Input Current Per Meter
- 1.33A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x20 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
3680 lm/m
TOTAL OUTPUT
32W/m
POWER DRAW
115
EFFICACY
