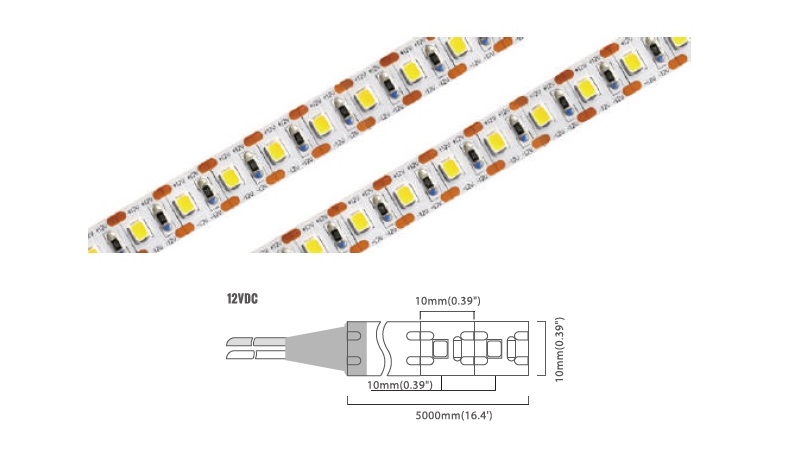

Mini Cutting 100 LED/m | 2835 SMD 100LED/m 12V 20W/m 2700K
SKU JN100110-Mini-27
Mini Cutting 100 LED/m | 2835 SMD: 100 2835 SMD LEDs/m, 20W/m, 12V, 2700K. Available in IP20. 9V LED; 10mm mini cut
Luminous flux
1,800 lm/m
Power consumption
20 W/m
Colour temperature
2700 K
IP rating
IP20
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 20W/m
- Luminous flux
- 1800 lm/m
- Efficacy
- 90 lm/W
- Colour temperature
- 2700K
- Colour rendering (CRI)
- 80+
- Beam angle
- 120°
- IP rating
- IP20
- Input Voltage
- 12V DC
- LED type
- 2835 SMD
- Lifetime
- 50,000 hours
Show all 19 specificationsShow fewer
- Form Factor
- 10mm
- LED Quantity Per Meter
- 100
- Strip Width (mm)
- 10
- Cut Point (mm)
- 10mm
- PCB Width (mm)
- 10mm
- Input Current Per Meter
- 1.67A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x10 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
1800 lm/m
TOTAL OUTPUT
20W/m
POWER DRAW
90
EFFICACY
