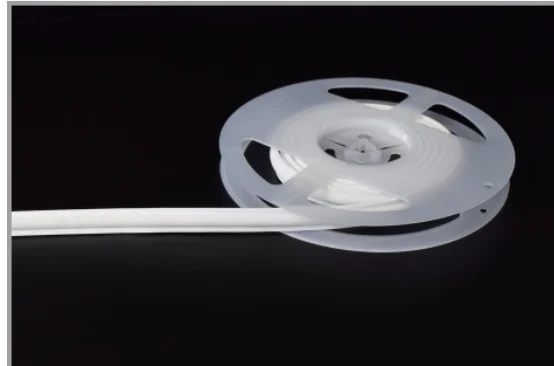

JNCM1404 | 280 LED/m | COBMAX 14mm 168LED/m 24V 15W/m Tunable CCT IP65
SKU JN168-COBMAX-1404-24-CCT
11 versions 15W/m · Tunable CCT · 24V DC · 168 Change
JNCM1404 | 280 LED/m | COBMAX 14mm: 168 COB 168 LED/m LEDs/m, 15W/m, DC24V, Tunable CCT. Available in IP65.
Luminous flux
1,268 lm/m
Power consumption
15 W/m
Colour temperature
Tunable CCT
IP rating
IP65
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 15W/m
- Luminous flux
- 1268 lm/m
- Colour temperature
- Tunable CCT
- Colour rendering (CRI)
- 80+
- Beam angle
- 120°
- IP rating
- IP65
- Input Voltage
- 24V DC
- LED type
- COB 168 LED/m
- Lifetime
- 50,000 hours
Show all 18 specificationsShow fewer
- Form Factor
- 14mm
- LED Quantity Per Meter
- 168
- Strip Width (mm)
- 14
- Cut Point (mm)
- 83.3mm
- PCB Width (mm)
- 14mm
- Input Current Per Meter
- 0.62A/m
- Max Run Length (m)
- 5
- PCB Copper Weight (oz)
- 2
- Operating temperature
- -20°C ~ 50°C
Packaging & shipping
- Product dimensions
- 5000x14 mm
Shipping volume
Packing data for this product is available on request. We will confirm carton dimensions, total volume and gross weight for your quantity.
Ask for packing data →Performance
1268 lm/m
TOTAL OUTPUT
15W/m
POWER DRAW
120°
BEAM
