JN_500W-1320W_floodlight

800 Watt natural white non-dimmable 15×15° LED flood light (IP65)

SKU JNFL21-800S-4500-A1-ND
60 versions 4500 K · 15 × 15° · Non-dimmable Change
Colour
3000 K 3500 K 4000 K 4500 K 5000 K
Beam angle
15 × 15° 30 × 30° 40 × 40° 60 × 60° 60 × 135° 85 × 135°
Dimming
Dimmable Non-dimmable

800 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 1500 Watt metal halide/HID/HPS.

Luminous flux
123,000 lm
Power consumption
880 W
Beam angle
15° × 15°
IP rating
IP65
Project pricing on request
Volume, vessel class and coating affect price.
Spec sheet (PDF) or get in touch
Specification

Technical specification

Power consumption
880 W
Luminous flux
123,000 lm
Efficacy
140 lm/W
Colour temperature
4,500 K · Natural White
Colour rendering (CRI)
70
Beam angle
15x15°
IP rating
IP65
IK rating
IK07
Input Voltage
100-305V
Dimming
Non-dimmable
Show all 25 specificationsShow fewer
LED type
Philips Lumileds (Luxeon 5050)
Housing colour
Black
Power Factor (PF)
>0.95
Warranty
5 years
Input Frequency
50/60 Hz
Number of LED Modules
1 modules
Operating temperature
-20°C ~ 45°C
Mounting Type
Adjustable Bracket
Fixture height (mm)
117 mm
Fixture length (mm)
833 mm
Fixture width (mm)
621 mm
Net weight
36 kg
LED driver brand
Meanwell HLG-480H
Working humidity range
10%-90% RH
Lifetime
50,000 hours

Packaging & shipping

Product dimensions
833 × 621 × 117 mm (depth with fully extended bracket: 384 mm)
Net weight
36 kg
Export carton dimensions
950 × 880 × 270 mm
Export carton gross weight
33 kg
Products per carton
1

Shipping volume

Enter a quantity to size the shipment.

1 per carton
Cartons
—
Total volume
—
Total gross weight
—
Carton size
950 × 880 × 270 mm

Export carton figures. Volume and weight are counted in whole cartons, which is how a freight quote is priced.

Performance

123,000 lm
TOTAL OUTPUT
880 W
POWER DRAW
140
EFFICACY
Related

Often specified together

View all in LED flood lights →
60 Watt warm white non-dimmable 60x60° LED flood light (IP65)
JNFL10-060S-3000-A4-ND
60 Watt warm white non-dimmable 60x60° LED flood light (IP65)

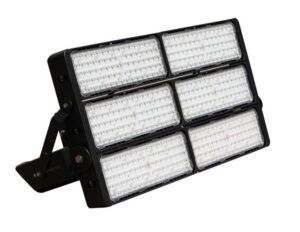

600 W Modular LED Flood Light
