ATEX explosion proof LED lights 200 Watt, 26000lm, 40°/ 60°/ 90°/ 120°, IP67, 2200K-7000K
SKU JNFL-ATEX-FSeries2 (200W)
Explosion-proof LED lighting solution certified for hazardous locations
Luminous flux
26,000 lm
Power consumption
200 W
Beam angle
40°, 60°, 90°, 120°
IP rating
IP67
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 200 W
- Luminous flux
- 26,000 lm
- Efficacy
- 140 lm/W
- Colour temperature
- 2200K-7000K
- Colour rendering (CRI)
- >70
- Beam angle
- 40°, 60°, 90°, 120°
- IP rating
- IP67
- IK rating
- IK07 (without wire guard) · IK09 (with wire guard)
- Input Voltage
- AC120-277V, 50/60Hz, DC36V
- Dimming
- 0-10V (optional)
Show all 32 specificationsShow fewer
- Input Frequency
- 50/ 60Hz
- LED type
- Philips LUMILEDs 3030 or 5050
- Power Factor (PF)
- >0.95
- Housing colour
- Grey
- Housing material
- Copper free aluminium, tempered glass
- Warranty
- 5 years
- ATEX standard
- Flame-proof type: Gas: II 2 G Ex db IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°...120°C Db IP66; Flame-proof and increased safe type: Gas: II 2 G Ex db eb IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°C...120°C Db IP66
- IECEx standard
- Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db
- UL standard
- Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G
- Retilap standard
- Esquema 5 RETILAP
- Fixture shape
- Rectangular

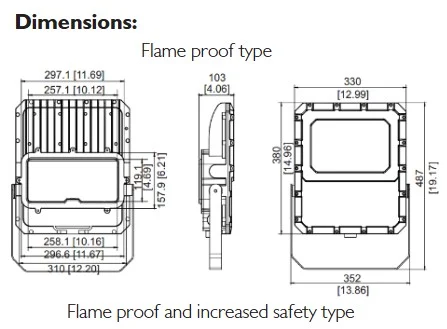

- Fixture height (mm)
- 103 mm
- Fixture width (mm)
- 270 mm
- Fixture length (mm)
- 380 mm
- Net weight
- 12.5 kg
- Temperature Class
- T6
- Gas group
- IIC
- Protection type
- Ex eb mb
- Zone classification
- Zone 1 & 2
- Operating temperature
- -20°C to +45°C
- Working humidity range
- 10-95% RH
- Lifetime
- 80,000 hours
Packaging & shipping
- Product dimensions
- 103×270×380 mm
- Net weight
- 12.5 kg
- Export carton dimensions
- 386 × 330 × 220 mm
- Export carton gross weight
- 14.5 kg
- Products per carton
- 1
Shipping volume
Enter a quantity to size the shipment.
- Cartons
- —
- Total volume
- —
- Total gross weight
- —
- Carton size
- 386 × 330 × 220 mm
Export carton figures. Volume and weight are counted in whole cartons, which is how a freight quote is priced.
Performance
26,000 lm
TOTAL OUTPUT
200 W
POWER DRAW
140
EFFICACY
