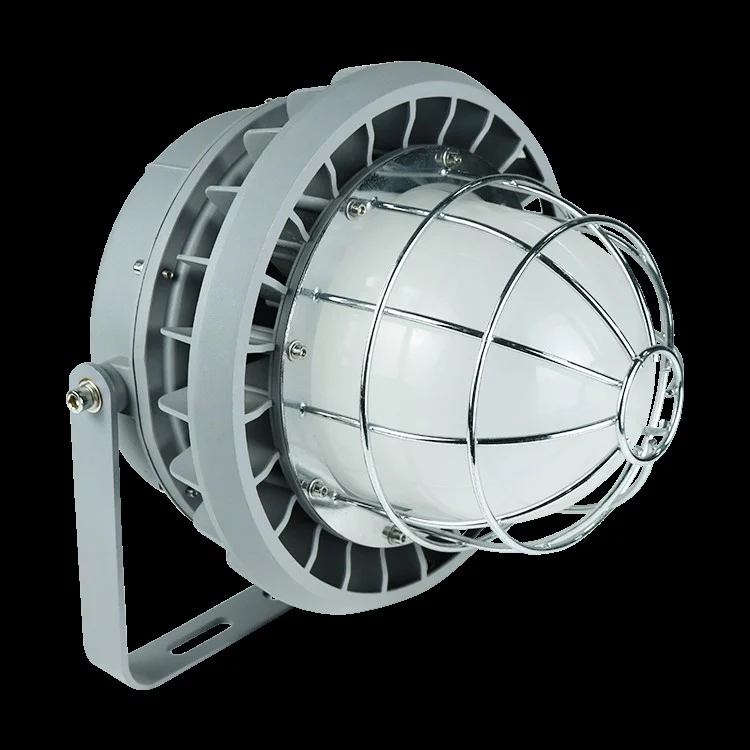

ATEX explosion proof LED lights 20 Watt, 2800lm, 30°/ 60°/ 90°/ 120°, IP67, Esquema 5 RETILAP, UL, IECEx, ATEX, CSA, ABS,2200K-7000K
SKU JN-HB-ATEX-BSeries1 (20W)
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, ceiling mounting by opening the LED driver box, arm mounting by opening the LED driver box, stanchion mounting.
Luminous flux
2,800 lm
Power consumption
20 W
Beam angle
30°, 60°, 90°, 120°
IP rating
IP67
Project pricing on request
Volume, vessel class and coating affect price.
Specification
Technical specification
- Power consumption
- 20 W
- Luminous flux
- 2,800 lm
- Efficacy
- 140 lm/W
- Colour temperature
- 2200K-7000K
- Colour rendering (CRI)
- >70
- Beam angle
- 30°, 60°, 90°, 120°
- IP rating
- IP67
- IK rating
- IK08 (Glass cover) · IK10 (with Wire Guard)
- Input Voltage
- 200-250V AC (Zone 1,2); 120-277/ 277-480VAC (North America)
- Dimming
- 0-10V
Show all 33 specificationsShow fewer
- Input Frequency
- 50/ 60Hz
- LED type
- SMD
- Power Factor (PF)
- >0.95
- Housing colour
- Grey
- Housing material
- Copper free aliminium
- Warranty
- 5 years
- ATEX standard
- II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
- IECEx standard
- Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°CDb
- UL standard
- Class I, Division 2, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III
- Retilap standard
- Esquema 5 RETILAP
- Other standards
- UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
- Fixture shape
- Round
- Fixture height (mm)
- 129 mm
- Fixture width (mm)
- 270 mm
- Fixture length (mm)
- 270 mm
- Net weight
- 4.4 kg
- Temperature Class
- T6
- Gas group
- IIC
- Protection type
- Ex eb mb
- Zone classification
- Zone 1 & 2
- Operating temperature
- -20°C to +45°C
- Working humidity range
- 10-95% RH
- Lifetime
- 80,000 hours
Packaging & shipping
- Product dimensions
- 129×270×270 mm
- Net weight
- 4.4 kg
- Export carton dimensions
- 386 × 330 × 220 mm
- Export carton gross weight
- 5.5 kg
- Products per carton
- 1
Shipping volume
Enter a quantity to size the shipment.
- Cartons
- —
- Total volume
- —
- Total gross weight
- —
- Carton size
- 386 × 330 × 220 mm
Export carton figures. Volume and weight are counted in whole cartons, which is how a freight quote is priced.
Performance
2,800 lm
TOTAL OUTPUT
20 W
POWER DRAW
140
EFFICACY
