Description
RGBW+CCT Series 5-in-1 60 LED/m | 5050 SMD 60LED/m 24V 2.4W/m Red IP20/IP65
SKU: JN60215-RGB-CCT
Features of the RGBW+CCT Series 5-in-1 60 LED/m | 5050 SMD 60LED/m 24V 2.4W/m Red IP20/IP65
| Product SKU | JN60215-RGB-CCT |
|---|---|
| Power Consumption | 2.4W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | Red |
| Color Rendering Index (CRI) | 80+ |
| IP Rating (Ingress Protection) | IP20/IP65 |
| LED type | 5050 SMD |
| Form Factor | 15mm |
| LED Quantity Per Meter | 60 |
| Luminous Efficacy (lm/W) | 53 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 125mm |
| PCB Width (mm) | 15mm |
| Lumen Output (lm/m) | 53 lm/m |
| Input Current Per Meter | 0.10A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x15mm |
|---|
Specification Details

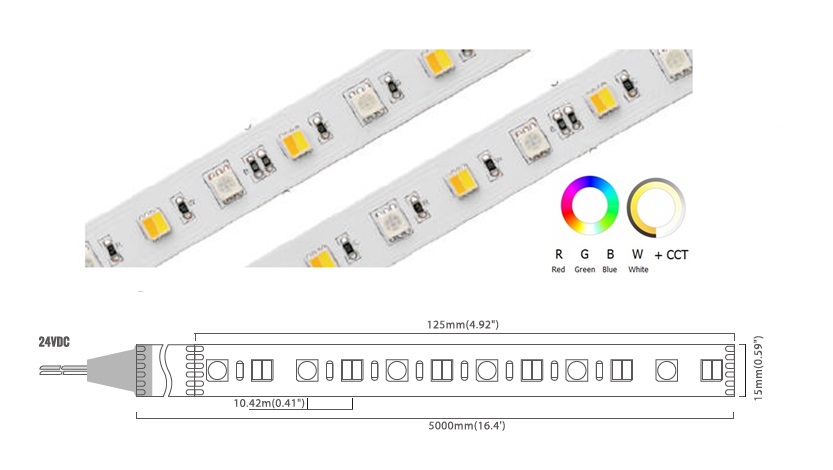

RGBW+CCT Series 5-in-1 60 LED/m | 5050 SMD: 60 5050 SMD LEDs/m, 2.4W/m, 24V, Red. Available in IP20/IP65. 5050 3-in-1 RGB + 2-in-1 CCT; Mi-Light FUT039
