Description
Features of the Marine LED Navigation Signal Light - Starboard 8W
| Product SKU | JN-NAV-008S-SB-S |
|---|---|
| Power Consumption | 8 |
| Input Voltage | 100-240V AC |
| IP Rating | IP56 |
| Socket/Base Type | 4 hole mounting |
| Dimming Capability | Non-dimmable |
| Certifications | CCS |
| Housing Colour | Black |
| Housing Material | PA+GF |
| LED Type | SMD |
| IMPA Code | 370422 |
| Visibility Range (NM) | 3 NM |
| Level Arc | 112° |
| Signal Color | Green |
| Output Voltage | 24V DC |
| LED Driver | Constant Current LED Driver |
| Particulars | For all vessels ≥50M in length, as lamp signal for night navigation. With high power LEDs. 4 hole mounting (Φ10~Φ12 cable entry). With CCS approval |
| Working Temperature Range | -30°C to +45°C |
| Product Dimensions (mm) | 215×215×285 |
|---|---|
| Net Weight (kg) | 2.95 kg |
| Export Carton Dimensions (mm) | 300×250×250 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 3 kg |
| Fixture Height (mm) | 215 |
| Fixture Width (mm) | 215 |
| Fixture Length (mm) | 285 |
Specification Details

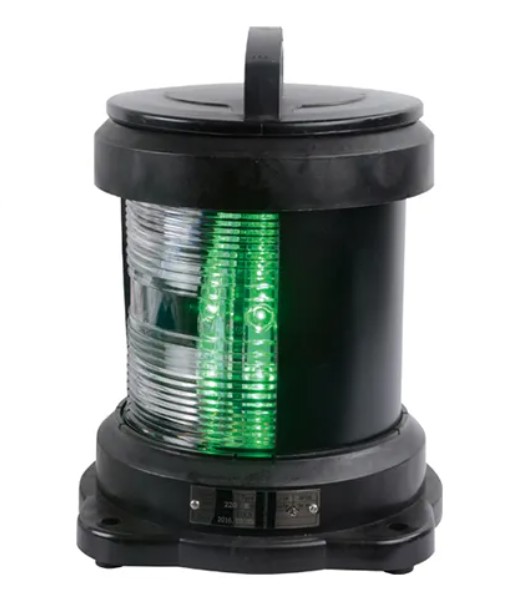

Single Lens LED Starboard Light for all vessels ≥50M in length, as lamp signal for night navigation. With high power LEDs. 4 hole mounting (Φ10~Φ12 cable entry). With CCS approval.
