Description
Lens Series 10 LED/m | 6060 SMD | S-type Bendable 10LED/m 12V 6W/m 11000K
SKU: JN10108-S-110
Features of the Lens Series 10 LED/m | 6060 SMD | S-type Bendable 10LED/m 12V 6W/m 11000K
| Product SKU | JN10108-S-110 |
|---|---|
| Power Consumption | 6W/m |
| Input Voltage | 12V DC |
| Kelvin (K) | 11000K |
| Color Rendering Index (CRI) | 80+ |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 6060 SMD |
| Form Factor | 8mm |
| LED Quantity Per Meter | 10 |
| Luminous Efficacy (lm/W) | 85 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 100mm |
| PCB Width (mm) | 8mm |
| Lumen Output (lm/m) | 510 lm/m |
| Input Current Per Meter | 0.50A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |

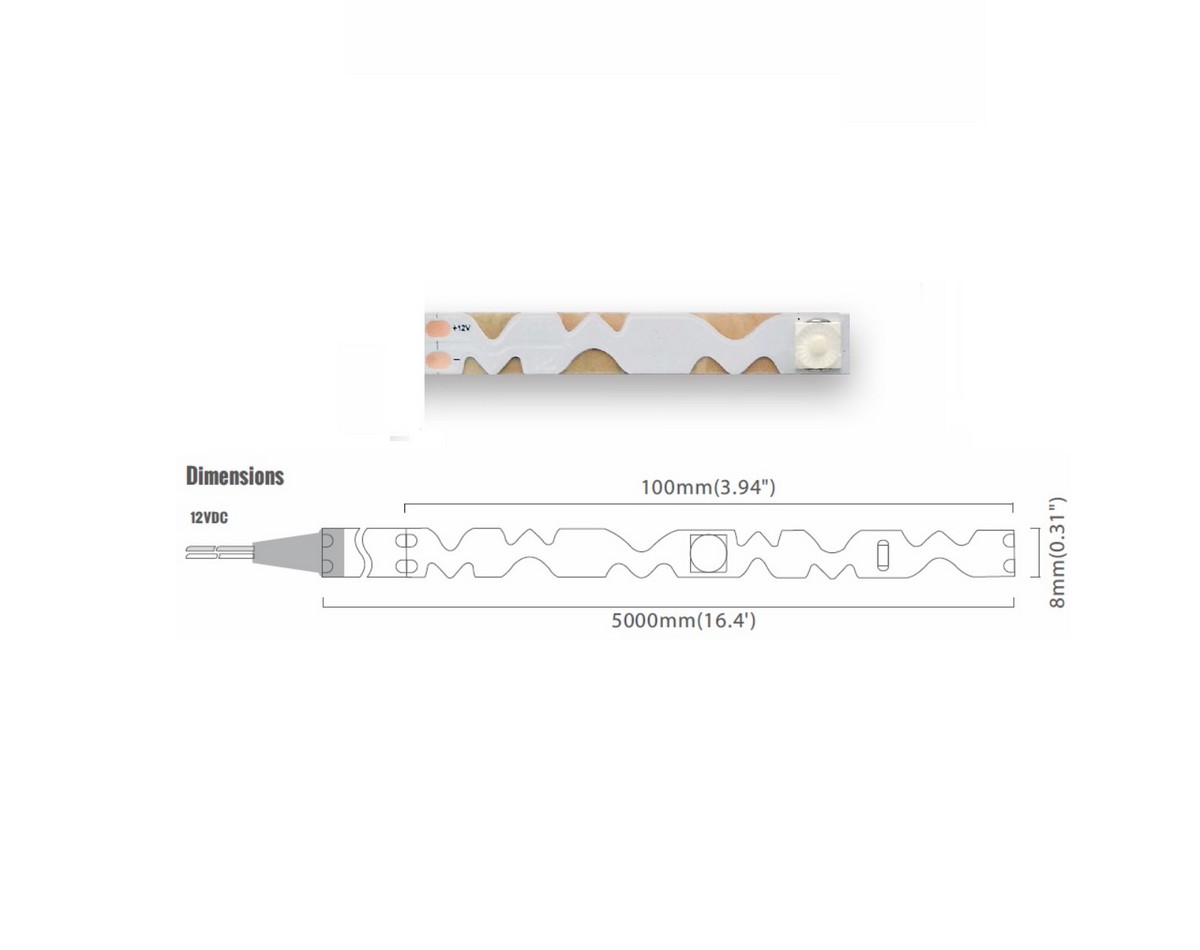

| Product dimensions (mm) | 5000x8mm |
|---|
Specification Details
Lens Series 10 LED/m | 6060 SMD | S-type Bendable: 10 6060 SMD LEDs/m, 6W/m, 12V, 11000K. Available in IP20. 160° beam; bendable for back-light & signs
