Description

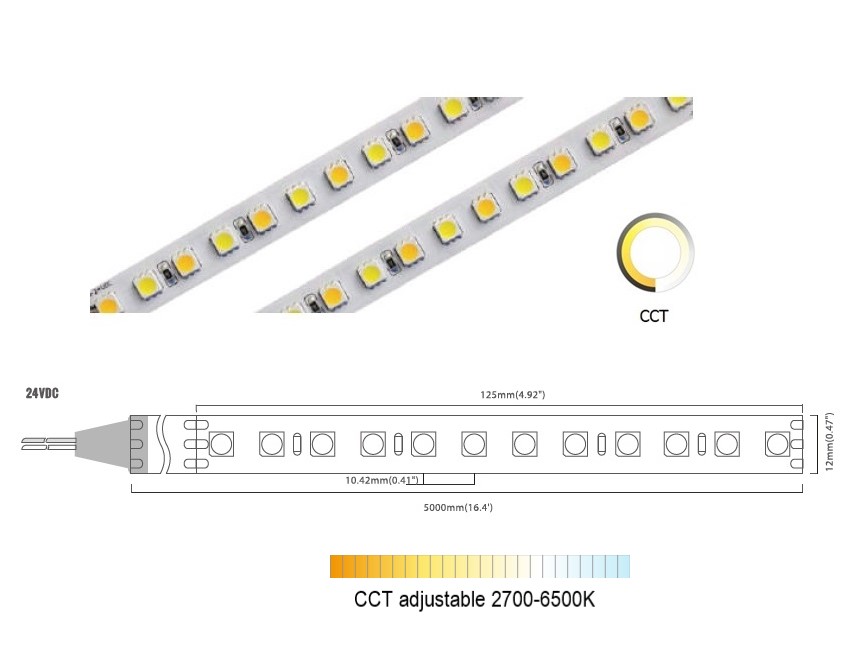

Features of the Dual White 96 LED/m | 5050 SMD 96LED/m 24V 11.52W/m 2700K
| Product SKU | JN96212-CCT-27 |
|---|---|
| Power Consumption | 11.52W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 2700K |
| Color Rendering Index (CRI) | >90, >95 |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 5050 SMD |
| Form Factor | 12mm |
| LED Quantity Per Meter | 96 |
| Luminous Efficacy (lm/W) | 83/85/84 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 125mm |
| PCB Width (mm) | 12mm |
| Lumen Output (lm/m) | 956 lm/m |
| Input Current Per Meter | 0.48A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x12mm |
|---|
Specification Details
Dual White 96 LED/m | 5050 SMD: 96 5050 SMD LEDs/m, 11.52W/m, 24V, 2700K. Available in IP20. High Density 96 LEDs single line
