Description

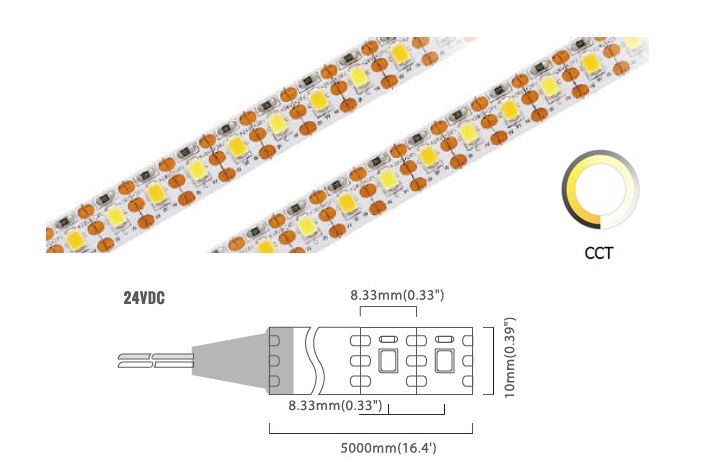

Dual White 120 LED/m Mini Cut | 2835 SMD 120LED/m 24V 11W/m 2700K
SKU: JNB120210-CCT-27
Features of the Dual White 120 LED/m Mini Cut | 2835 SMD 120LED/m 24V 11W/m 2700K
| Product SKU | JNB120210-CCT-27 |
|---|---|
| Power Consumption | 11W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 2700K |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 2835 SMD |
| Form Factor | 10mm |
| LED Quantity Per Meter | 120 |
| Luminous Efficacy (lm/W) | 100 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 8.3mm |
| PCB Width (mm) | 10mm |
| Lumen Output (lm/m) | 1100 lm/m |
| Input Current Per Meter | 0.46A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10mm |
|---|
Specification Details
Dual White 120 LED/m Mini Cut | 2835 SMD: 120 2835 SMD LEDs/m, 11W/m, 24V, 2700K. Available in IP20. Mini cut 8.3mm
