Description

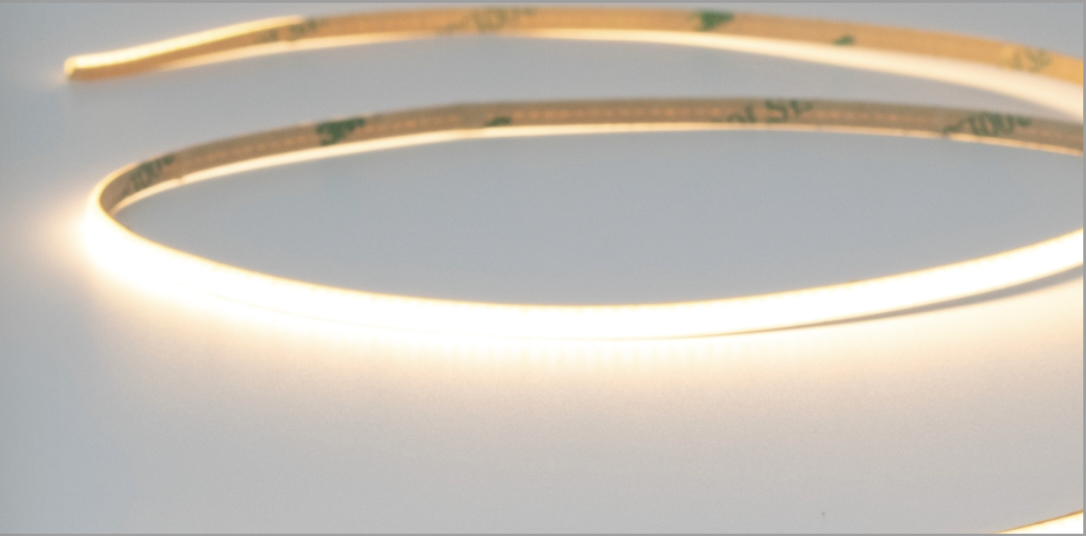

Features of the COB Mono Series 480LED/m 12V 15W/m Multi-color options
| Product SKU | JN-COB-480-24-10 |
|---|---|
| Power Consumption | 15W/m |
| Input Voltage | 12V DC |
| Kelvin (K) | Multi-color options |
| Color Rendering Index (CRI) | 90+ |
| IP Rating (Ingress Protection) | IP20 |
| LED type | COB 480 LED/m |
| Form Factor | 8/10mm |
| LED Quantity Per Meter | 480 |
| Luminous Efficacy (lm/W) | 102 lm/W |
| Beam angle (°) | 120° |
| Colour Range | 2000K/2400K/2700K/3000K/3500K/4000K/5000K/6500K, Red/Green/Blue/Tiffany/Marrs |
| PCB Width (mm) | 8/10mm |
| Lumen Output (lm/m) | 1527 lm/m |
| Input Current Per Meter | 1.25A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x8/10mm |
|---|
Specification Details
COB Mono Series: 480 COB 480 LED/m LEDs/m, 15W/m, 12V/24V, Multi-color options. Available in IP20.
