Description
ATEX explosion proof LED lights 80 Watt, 10400lm, 40/ 60/ 90°, IP66, ,2200K-6500K
SKU: JN-ATEX-LinearASeries2 (80W)
Features of the ATEX explosion proof LED lights 80 Watt, 10400lm, 40/ 60/ 90°, IP66, ,2200K-6500K
| Product SKU | JN-ATEX-LinearASeries2 (80W) |
|---|---|
| Power Consumption | 80 |
| Input Voltage | AC100-277V or DC12-36V (0-10V Optional) |
| Input Frequency | 50/ 60Hz |
| Light Color | 2200K-6500K |
| LED Type | SMD |
| Total Lumens Output | 10400 |
| Luminous Efficacy (lm/W) | 130 |
| Power Factor | >0.95 |
| IK Impact Rating | IK10 |
| Housing Colour | Grey |
| Housing Material | Copper free aluminium, tempered glass |
| Warranty Period (Years) | 5 |
| IP Rating | IP66 |
| Color Rendering Index | >70 |
| Beam Angle (°) | 40°, 60°, 90° |
| Dimming Capability | 0-10V (optional) |
| ATEX Standard | ATEX Directive 2014/34/EU: II 2 G Ex eb mb IIC T6...T4 Gb, II 2 D Ex tb IIIC T80°C...T120°C Db IP66, II 3 G Ex ec IIC T6...T4 Gc |
| IECEx Standard | EN 60079-0, EN 60079-7, EN 60079-18, EN 60079-31 |
| UL Standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap Standard | Esquema 5 RETILAP |
| Fixture Shape | Rectangular |
| Fixture Height (mm) | 99 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 1304 mm |
| Net Weight (kg) | 15 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK10 (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |

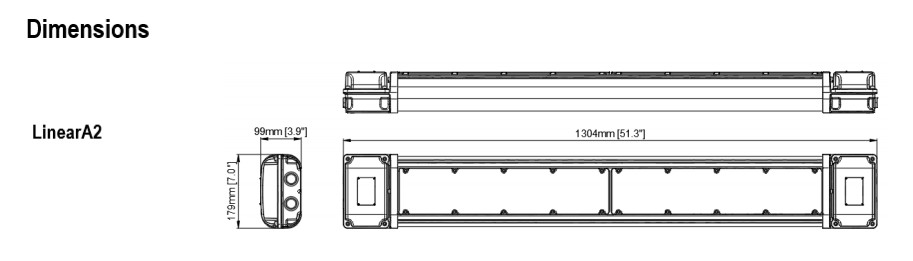

| Product Dimensions (mm) | 99×270×1304mm |
|---|---|
| Net Weight (kg) | 15 kg |
| Export Carton Dimensions (mm) | 1400x250x160 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 17 kg |
Specification Details
Available mounting methods: bracket surface mounting, hook and rope mounting, pole mounting
