Description
ATEX explosion proof LED lights 40 Watt, 5400lm, 120°, IP66, ,2200K-6500K
SKU: JN-ATEX-LinearDSeries1 (40W)
Features of the ATEX explosion proof LED lights 40 Watt, 5400lm, 120°, IP66, ,2200K-6500K
| Product SKU | JN-ATEX-LinearDSeries1 (40W) |
|---|---|
| Power Consumption | 40 |
| Input Voltage | AC120-277V |
| Input Frequency | 50/ 60Hz |
| Light Color | 2200K-6500K |
| LED Type | SMD |
| Total Lumens Output | 5400 |
| Luminous Efficacy (lm/W) | 130 |
| Power Factor | >0.95 |
| IK Impact Rating | IK10 |
| Housing Colour | Grey |
| Housing Material | Copper free aluminium, tempered glass |
| Warranty Period (Years) | 5 |
| IP Rating | IP66 |
| Color Rendering Index | >80 |
| Beam Angle (°) | 120° |
| Dimming Capability | 0-10V (optional) |
| ATEX Standard | II2 G Ex db eb mb IIC T6/T5 Gb, II2 D Ex tb IIIC, T80°C/T95°C Db |
| IECEx Standard | Ex db eb mb IIC T6/T5 Gb, Ex tb IIIC, T80°C/T95°C Db |
| UL Standard | Class I, Division 2, Groups A,B, C, D; Class II, Division 2, Groups F, G; Class III |
| Retilap Standard | Esquema 5 RETILAP |
| Fixture Shape | Rectangular |
| Fixture Height (mm) | 133 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 698 mm |
| Net Weight (kg) | 4.4 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK10 (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |

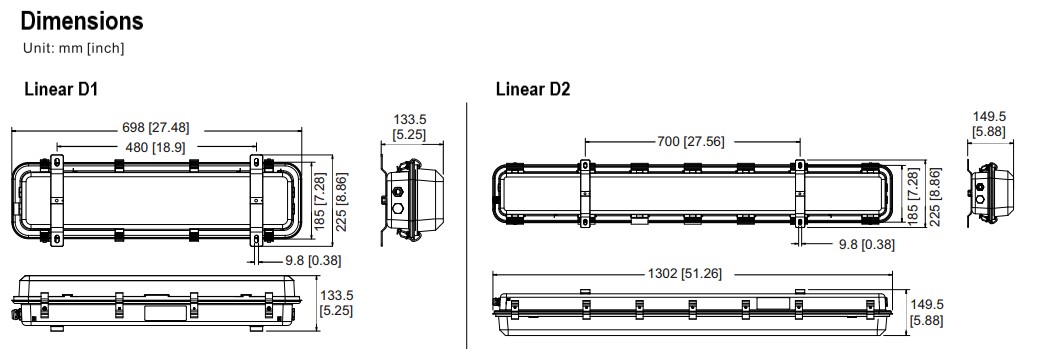

| Product Dimensions (mm) | 133×270×698mm |
|---|---|
| Net Weight (kg) | 4.4 kg |
| Export Carton Dimensions (mm) | 820x820x190 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 6.5 kg |
Specification Details
Standard SUS304 stainless steel housing (SUS316 optional), standard clear PC cover (diffused PC cover optional). Cable entry: standard 4 x NPT3/4 (side x1 open, side x3 with stopping plugs). With emergency: 3 x NPT3/4 (side x1 open, side x2 with stopping plugs) + self testing button
