Description
ATEX explosion proof LED lights 100 Watt, 14000lm, 30/ 60/ 90/ 120°, IP67, Esquema 5 RETILAP, UL, IECEx, ATEX, CSA, ABS,2200K-7000K
SKU: JN-HB-ATEX-BSeries3 (100W)
Features of the ATEX explosion proof LED lights 100 Watt, 14000lm, 30/ 60/ 90/ 120°, IP67, Esquema 5 RETILAP, UL, IECEx, ATEX, CSA, ABS,2200K-7000K
| Product SKU | JN-HB-ATEX-BSeries3 (100W) |
|---|---|
| Power Consumption | 100 |
| Input Voltage | 200-250V AC (Zone 1,2); 120-277/ 277-480VAC (North America) |
| Input Frequency | 50/ 60Hz |
| Light Color | 2200K-7000K |
| LED Type | SMD |
| Total Lumens Output | 14000 |
| Luminous Efficacy (lm/W) | 140 |
| Power Factor | >0.95 |
| IK Impact Rating | IK08 (Glass cover) |
| Housing Colour | Grey |
| Housing Material | Copper free aliminium |
| Warranty Period (Years) | 5 |
| IP Rating | IP67 |
| Color Rendering Index | >70 |
| Beam Angle (°) | 30°, 60°, 90°, 120° |
| Dimming Capability | 0-10V |
| ATEX Standard | II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db |
| IECEx Standard | Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°CDb |
| UL Standard | Class I, Division 2, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III |
| Retilap Standard | Esquema 5 RETILAP |
| Other Standards | UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB |
| Fixture Shape | Round |
| Fixture Height (mm) | 176 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 370 mm |
| Net Weight (kg) | 8.2 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK10 (with Wire Guard) (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |

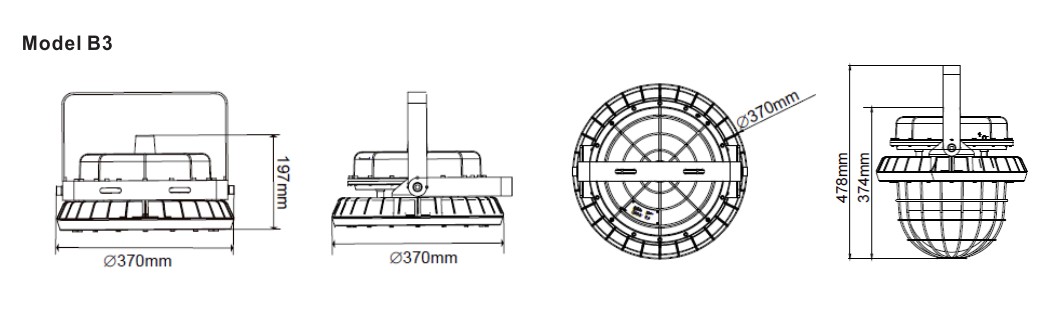

| Product Dimensions (mm) | 176×270×370mm |
|---|---|
| Net Weight (kg) | 8.2 kg |
| Export Carton Dimensions (mm) | 480x460x265 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 10.5 kg |
Specification Details
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, ceiling mounting by opening the LED driver box, arm mounting by opening the LED driver box, stanchion mounting.

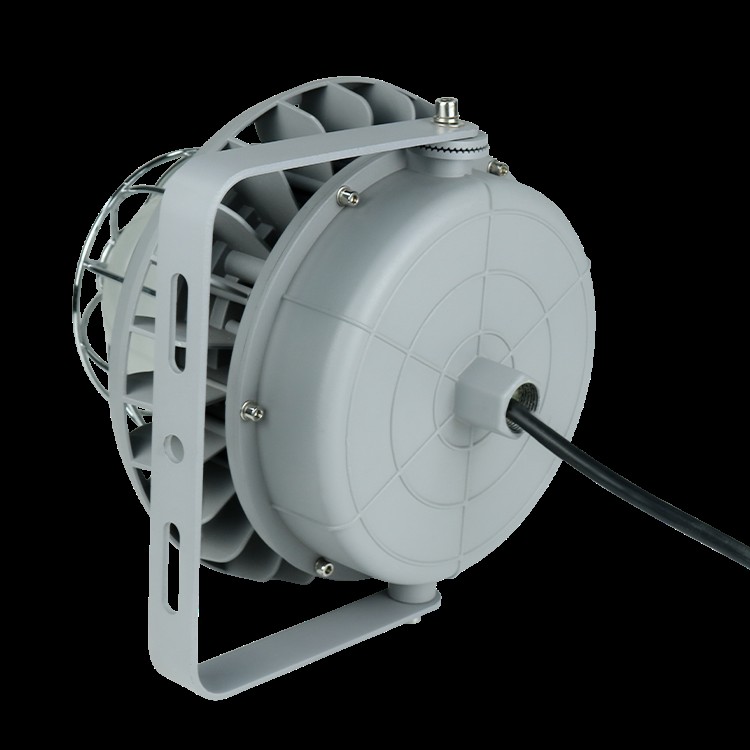

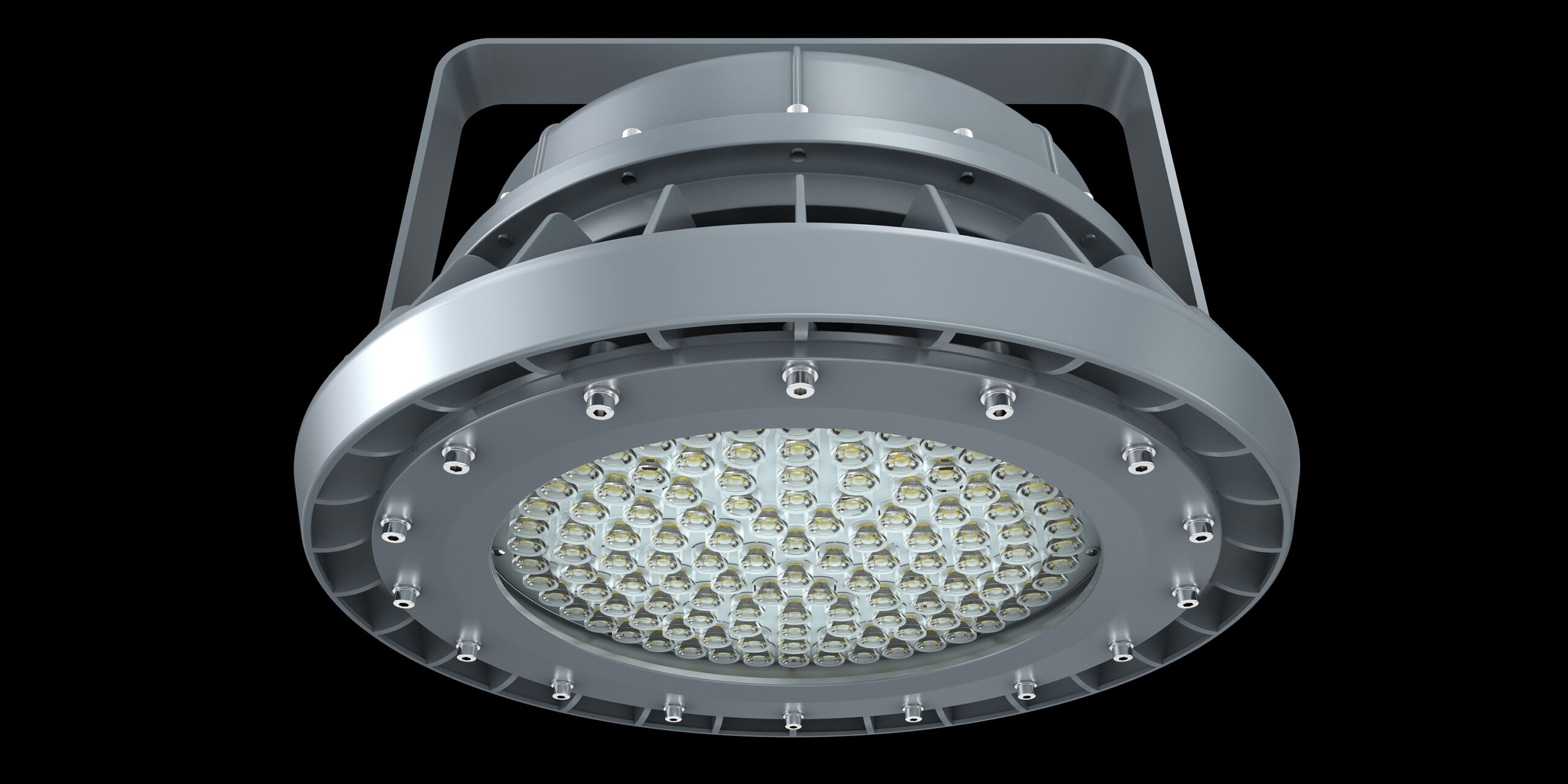

Product Gallery
