Description

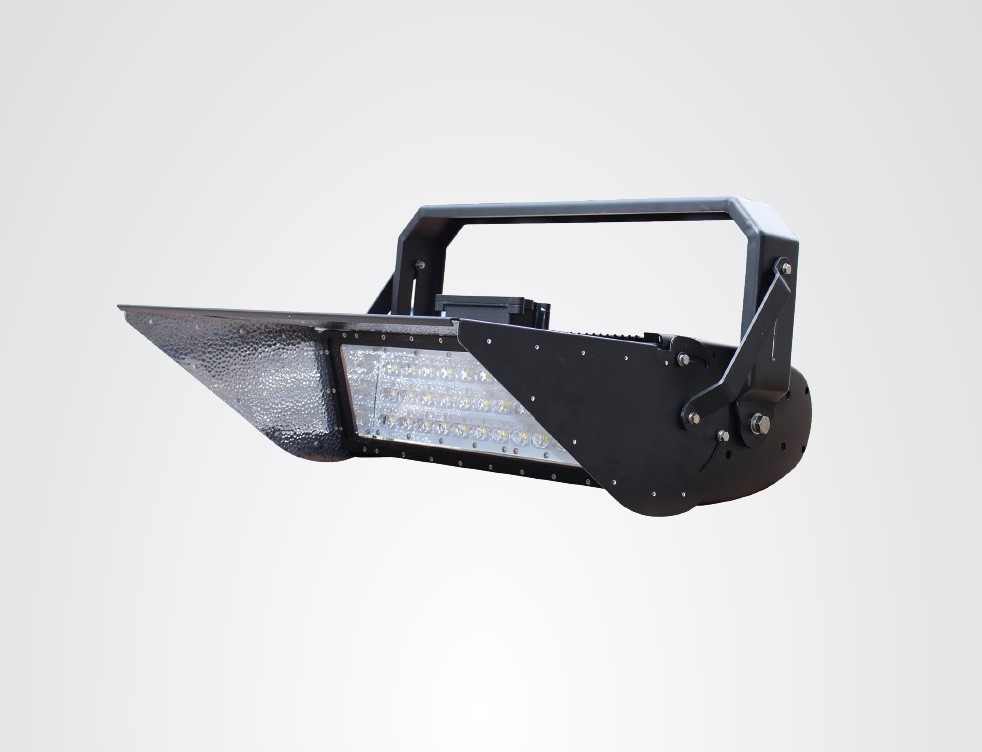

950 Watt cool white dimmable 60°x60° LED high mast light (IP65) — 5700K
SKU: JNHM2-950S-5700-A2-DIM
Features of the 950 Watt cool white dimmable 60°x60° LED high mast light (IP65) — 5700K
| Product SKU | JNHM2-950S-5700-A2-DIM |
|---|---|
| Power Consumption | 950 W |
| Input Voltage | 120-277 |
| Beam angle (°) | 60° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Kelvin (K) | 5700 |
| IK impact rating | IK08 |
| Dimming Capability | 0-10V |
| Housing colour | Marine-Grey |
| Warranty period (Years) | 5 |
| Power Factor (PF) | >0.95 |
| Surge protection | 10kV |
| Input Cable | H07RN-F 3G1.5 |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-95% RH |
| Lifespan (hours) | 80,000 hours |
| Beam Angle Range | 60°x60° (Fixed) |
| Beam Angle Format | Symmetric |
| Number of LED Modules | 6 modules |
| LED driver brand | Meanwell HLG-480H |
| Lens material | Tempered Glass |
| System Power (W) | 995 W |
| Input Voltage Range | 120-277V AC/ 347~488V AC (optional) |
| Fixture height (mm) | 550 mm |
| Fixture length (mm) | 480 mm |
| Fixture width (mm) | 320 mm |
| Total Lumen output | 109,000 lm |
| Efficacy (lm/W) | 120 lm/W |
| Net weight (kg) | 13 kg |
|---|---|
| Export carton dimensions (mm, 2pcs) | 900×700×320mm |
| Products per carton | 2 |
| Export carton gross weight (kg) | 15 kg |
| Fixture height (mm) | 550 |
| Fixture width (mm) | 320 |
| Fixture length (mm) | 480 |
Specification Details
950 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.
