Description

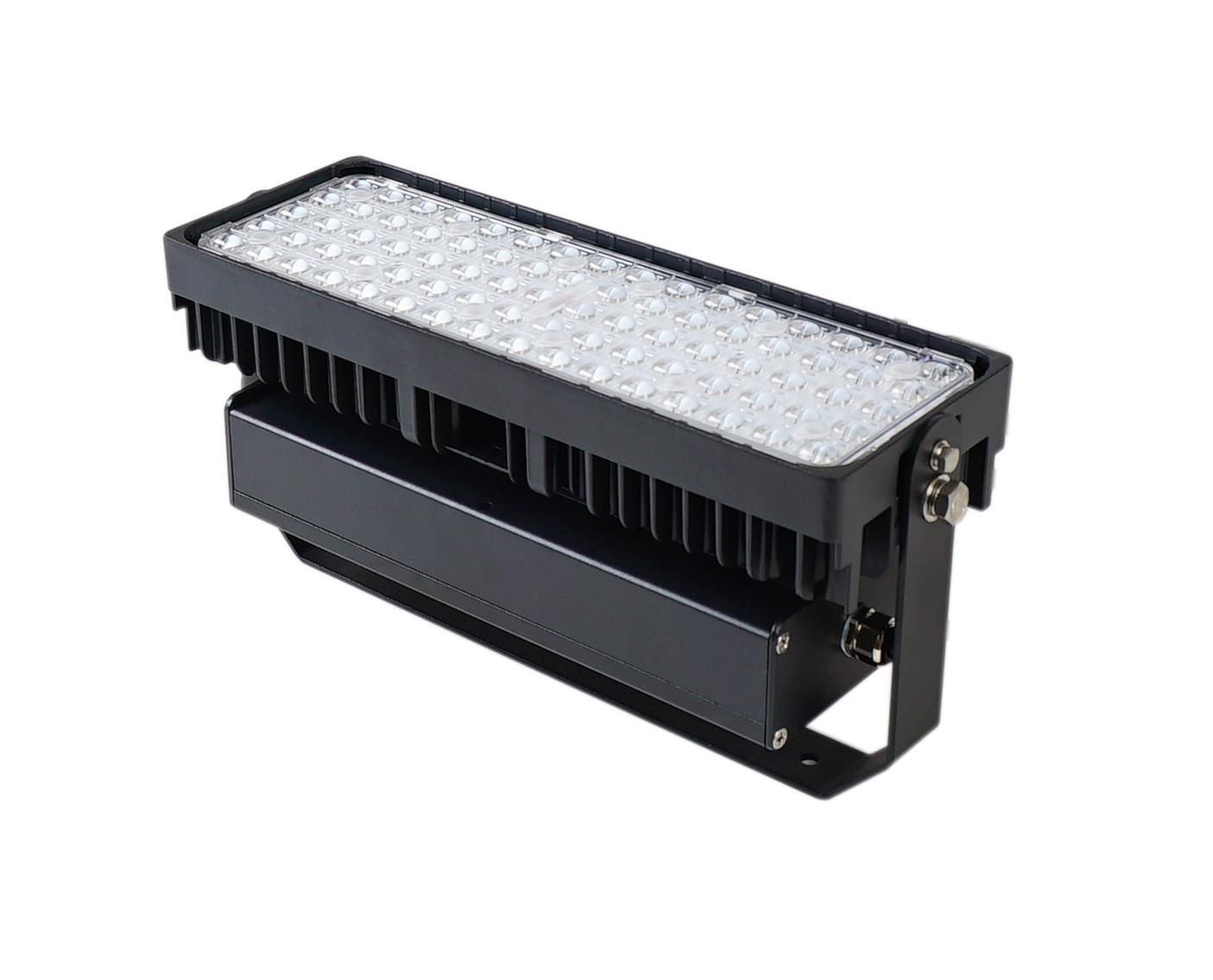

75 Watt cool white non-dimmable 90x90° modular LED flood light (IP65)
SKU: JNFLM11-075S-6500-A4-ND
Features of the 75 Watt cool white non-dimmable 90x90° modular LED flood light (IP65)
| Product SKU | JNFLM11-075S-6500-A4-ND |
|---|---|
| Power Consumption | 75 |
| Input Voltage | 100-277V |
| Beam Angle (°) | 90x90° |
| IP Rating | IP65 |
| Color Rendering Index | >80 |
| LED Type | Philips Lumileds (Luxeon TX) |
| Total Lumens Output | 9750 |
| Color Temperature (K) | 6000 |
| IK Impact Rating | IK08 |
| Dimming Capability | Dimmable |
| Housing Colour | Black |
| Power Factor | >0.95 |
| Input Frequency | 50/60 Hz |
| Housing Material | Die-cast Aluminum |
| Warranty Period (Years) | 5 |
| System Power | 81 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 90x90° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket Mount |
| Fixture Height (mm) | 113 mm |
| Fixture Length (mm) | 326 mm |
| Fixture Width (mm) | 128 mm |
| Product Weight | 3.3 kg |
| LED Driver Brand | Meanwell driver(s) |
| Working Temperature Range | -20°C ~ 45°C |
| Working Humidity Range | 10%-90% RH |
| Lifespan (Hours) | 50,000 hours |
| Product Dimensions (mm) | 326x128x113mm |
|---|---|
| Net Weight (kg) | 3.3 kg |
| Export Carton Dimensions (mm) | 400x360x230 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 8 kg |
Specification Details
75W modular LED flood light, configuration 1 module, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 150-175 Watt metal halide/HID/HPS.
