Description

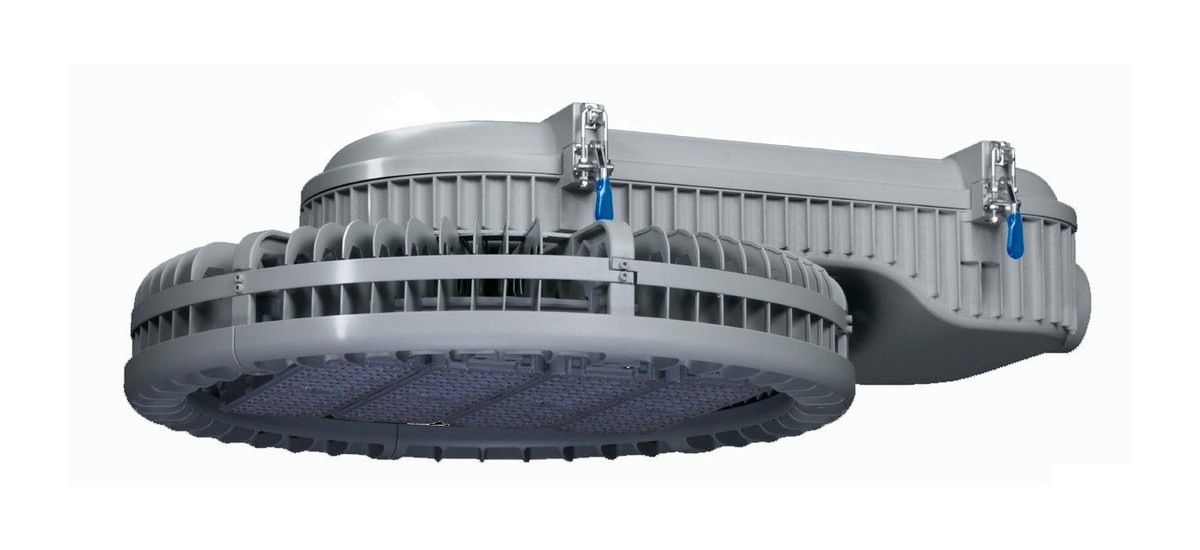

630 Watt cool white dimmable t1 = type l (30°x100°) LED high mast light (IP65)
SKU: JNHM1-630S-5000-A1-DIM
Features of the 630 Watt cool white dimmable t1 = type l (30°x100°) LED high mast light (IP65)
| Product SKU | JNHM1-630S-5000-A1-DIM |
|---|---|
| Power Consumption | 630 |
| Input Voltage | 120-277 |
| Beam Angle (°) | 30° |
| IP Rating | IP65 |
| Color Rendering Index | >70 |
| LED Type | Philips Lumileds |
| Color Temperature (K) | 5000 |
| IK Impact Rating | IK08 |
| Dimming Capability | 0-10V |
| Housing Colour | Marine-Grey |
| Warranty Period (Years) | 5 |
| Power Factor | >0.95 |
| Surge Protection | 10kV |
| Input Cable | H07RN-F 3G1.5 |
| Working Temperature Range | -20°C ~ 45°C |
| Working Humidity Range | 10%-95% RH |
| Lifespan (Hours) | 80,000 hours |
| Beam Angle Range | 30°x100° (Fixed) |
| Beam Angle Format | Type_i |
| Number of LED Modules | 6 modules |
| LED Driver Brand | Meanwell HLG-480H |
| Lens Material | Tempered Glass |
| System Power (W) | 690 W |
| Input Voltage Range | 120-277V AC/ 347~488V AC (optional) |

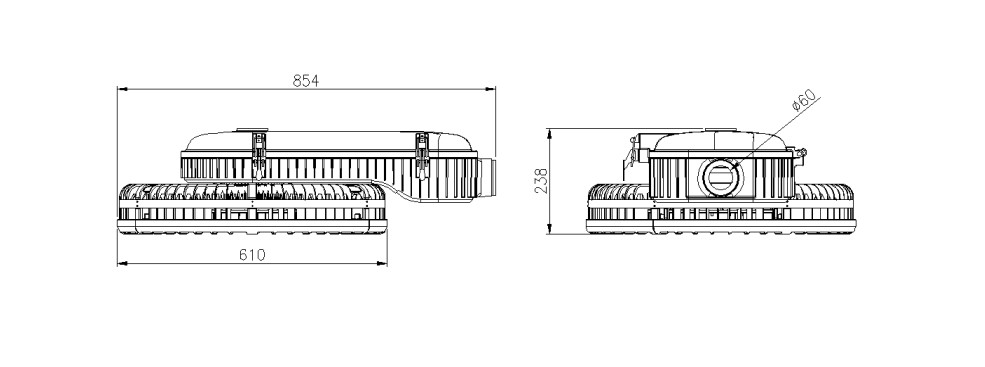

| Fixture Height (mm) | 854 mm |
| Fixture Length (mm) | 610 mm |
| Fixture Width (mm) | 238 mm |
| Total Lumens Output | 86,000 lm |
| Efficacy (lm/W) | 140 lm/W |
| Net Weight (kg) | 31 kg |
|---|---|
| Export Carton Dimensions (mm) | 630x614x283mm |
| Products per Carton | 2 |
| Export Carton Gross Weight (kg) | 35 kg |
Specification Details
630 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.
