Description
450 Watt cool white dimmable t3 = type lll (40°x140°) LED high mast light (IP65)
SKU: JNHM1-450S-5000-A3-DIM
Features of the 450 Watt cool white dimmable t3 = type lll (40°x140°) LED high mast light (IP65)
| Product SKU | JNHM1-450S-5000-A3-DIM |
|---|---|
| Power Consumption | 450 W |
| Input Voltage | 120-277 |
| Beam angle (°) | 40° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Kelvin (K) | 5000 |
| IK impact rating | IK08 |
| Dimming Capability | 0-10V |
| Housing colour | Marine-Grey |
| Warranty period (Years) | 5 |
| Power Factor (PF) | >0.95 |
| Surge protection | 10kV |
| Input Cable | H07RN-F 3G1.0 |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-95% RH |
| Lifespan (hours) | 80,000 hours |
| Beam Angle Range | 40°x140° (Fixed) |
| Beam Angle Format | Type_iii |
| Number of LED Modules | 4 modules |
| LED driver brand | Meanwell HLG-480H |
| Lens material | Tempered Glass |
| System Power (W) | 495 W |
| Input Voltage Range | 120-277V AC/ 347~488V AC (optional) |

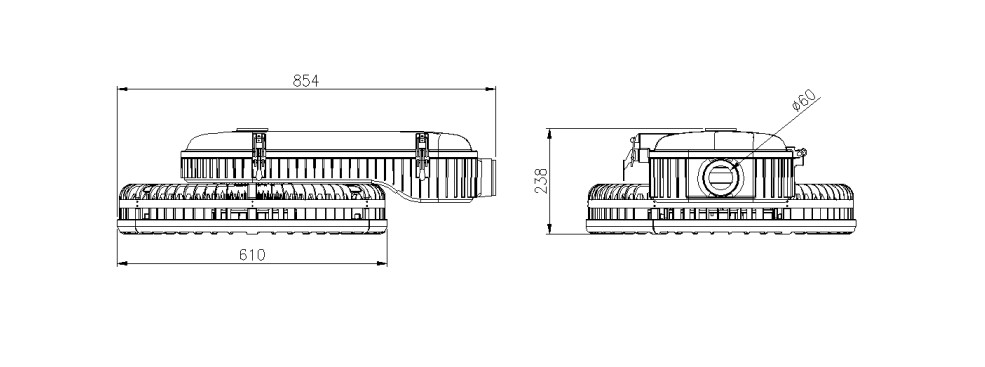

| Fixture height (mm) | 854 mm |
| Fixture length (mm) | 610 mm |
| Fixture width (mm) | 238 mm |
| Total Lumen output | 63,500 lm |
| Efficacy (lm/W) | 140 lm/W |
| Net weight (kg) | 30 kg |
|---|---|
| Export carton dimensions (mm, 2pcs) | 900×700×320mm |
| Products per carton | 2 |
| Export carton gross weight (kg) | 34 kg |
| Fixture height (mm) | 854 |
| Fixture width (mm) | 238 |
| Fixture length (mm) | 610 |
Specification Details
450 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.
