Description

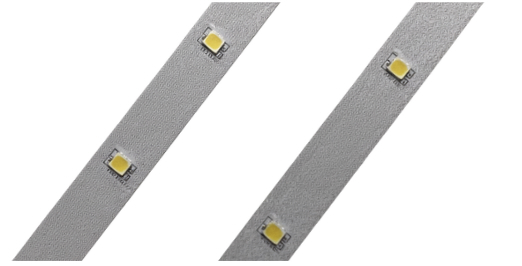

Features of the 2835 Series 30 LED/m | 2835 SMD (24V/15m) 30LED/m 24V 5.76W/m 4000K
| Product SKU | JN30210-40 |
|---|---|
| Power Consumption | 5.76W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 4000K |
| Color Rendering Index (CRI) | 80+ |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 2835 SMD |
| Form Factor | 10mm |
| LED Quantity Per Meter | 30 |
| Luminous Efficacy (lm/W) | 78 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 166.67mm |
| PCB Width (mm) | 10mm |
| Lumen Output (lm/m) | 483 lm/m |
| Input Current Per Meter | 0.24A/m |
| Max Run Length (m) | 15 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10mm |
|---|
Specification Details
2835 Series 30 LED/m | 2835 SMD (24V/15m): 30 2835 SMD LEDs/m, 5.76W/m, 24V, 4000K. Available in IP20. CC IC; 15m max single feed
Product Gallery
