Description
ATEX explosion proof LED lights 40 Watt, 5600lm, 120°, IP67, ,2200K-6500K
SKU: JN-ATEX-LinearCSeries1 (40W)
Features of the ATEX explosion proof LED lights 40 Watt, 5600lm, 120°, IP67, ,2200K-6500K
| Product SKU | JN-ATEX-LinearCSeries1 (40W) |
|---|---|
| Power Consumption | 40 |
| Input Voltage | AC100-277V; 200-480VAC; 12-36VDC |
| Input Frequency | 50/ 60Hz |
| Light Color | 2200K-6500K |
| LED Type | Philips Lumileds |
| Total Lumens Output | 5600 |
| Luminous Efficacy (lm/W) | 140 |
| Power Factor | >0.95 |
| IK Impact Rating | IK08 (Glass cover) |
| Housing Colour | Grey |
| Housing Material | Copper free aluminium, tempered glass |
| Warranty Period (Years) | 5 |
| IP Rating | IP67 |
| Color Rendering Index | >70 |
| Beam Angle (°) | 120° |
| Dimming Capability | 0-10V (optional) |
| ATEX Standard | II2 G Ex db IIB T4 Gb, II2 D Ex tb IIIC, T63.5°C Db IP65 |
| IECEx Standard | Ex db IIB T4 Gb, Ex tb IIIC, T63.5°C Db IP65 |
| UL Standard | Class I, Division 1, Groups C, D; Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III |
| Retilap Standard | Esquema 5 RETILAP |
| Other Standards | CB (Ref. Certif. No.: DE 2-038462-M1); UL1598, UL1598A, UL924, ETL, ABS, DLC, 1000 Hours Salt Spray/ 5G Vibration |
| Fixture Shape | Rectangular |

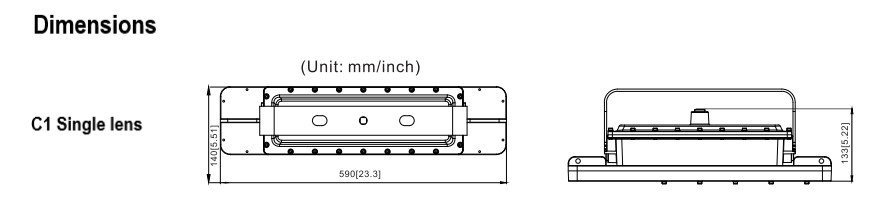

| Fixture Height (mm) | 133 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 590 mm |
| Net Weight (kg) | 12 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK10 (wire guard) (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |
| Product Dimensions (mm) | 133×270×590mm |
|---|---|
| Net Weight (kg) | 12 kg |
| Export Carton Dimensions (mm) | 770x340x265 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 14 kg |
Specification Details
Available mounting methods: ceiling mounting, wall mounting, pole bracket mounting, pendant mounting, chain mounting
