Description

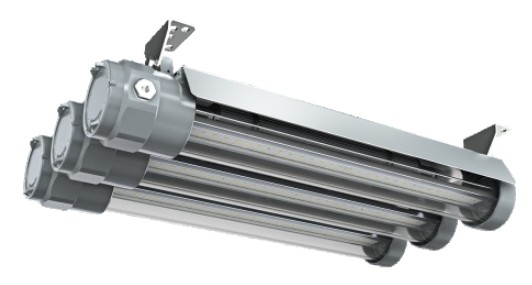

ATEX explosion proof LED lights 3x20 Watt, 11700lm, 120°, IP67, ,3000K - 6500K
SKU: JN-ATEX-LinearESeries2 (3x20W)
Features of the ATEX explosion proof LED lights 3x20 Watt, 11700lm, 120°, IP67, ,3000K - 6500K
| Product SKU | JN-ATEX-LinearESeries2 (3x20W) |
|---|---|
| Power Consumption | 20 |
| Input Voltage | AC100-277V, 50-60Hz; DC12-48V |
| Input Frequency | 50/ 60Hz |
| Light Color | 3000K - 6500K |
| LED Type | Philips Lumileds |
| Total Lumens Output | 11700 |
| Luminous Efficacy (lm/W) | 130 |
| Power Factor | >0.95 |
| IK Impact Rating | IK10 (enclosures) |
| Housing Colour | Grey |
| Housing Material | ADC12 Aluminium/SUS304 |
| Warranty Period (Years) | 5 |
| IP Rating | IP67 |
| Color Rendering Index | >70 |
| Beam Angle (°) | 120° |
| Dimming Capability | Non-dimmable |
| ATEX Standard | II 2GD Ex db eb mb IIC T6/T5 Gb, II 2GD Ex tb IIIC T80°C/T95°C Db, II 3GD Ex db ec IIC T6/T5/T4 Gc, II 3GD Ex tc IIIC T80°/T95°C/T105°C Dc |
| IECEx Standard | Ex eb db mb IIC T6/T5 Gb, Ex tb IIIC T80°C/T95°C Db, Ex db ec IIC T6/T5/T4 Gc, Ex tc IIIC T80°/T95°C/T105°C Dc |
| UL Standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap Standard | Esquema 5 RETILAP |
| Other Standards | EN 60079-0, EN 60079-1, EN 60079-7, EN60079-18, EN60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18, IEC 60079-31 |
| Fixture Shape | Rectangular |

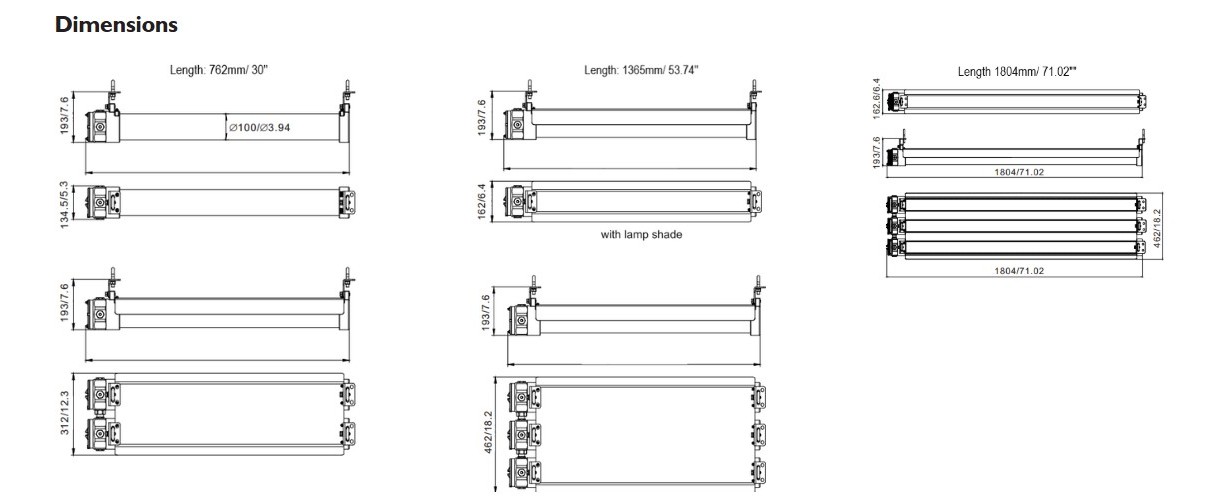

| Fixture Height (mm) | 193 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 1365 mm |
| Net Weight (kg) | 29 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK08 (glass) (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |
| Product Dimensions (mm) | 193×270×1365mm |
|---|---|
| Net Weight (kg) | 29 kg |
| Export Carton Dimensions (mm) | 1567x617x430 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 30.5 kg |
Specification Details
Available mounting methods: stanchion mounting, pendant mounting
