Description

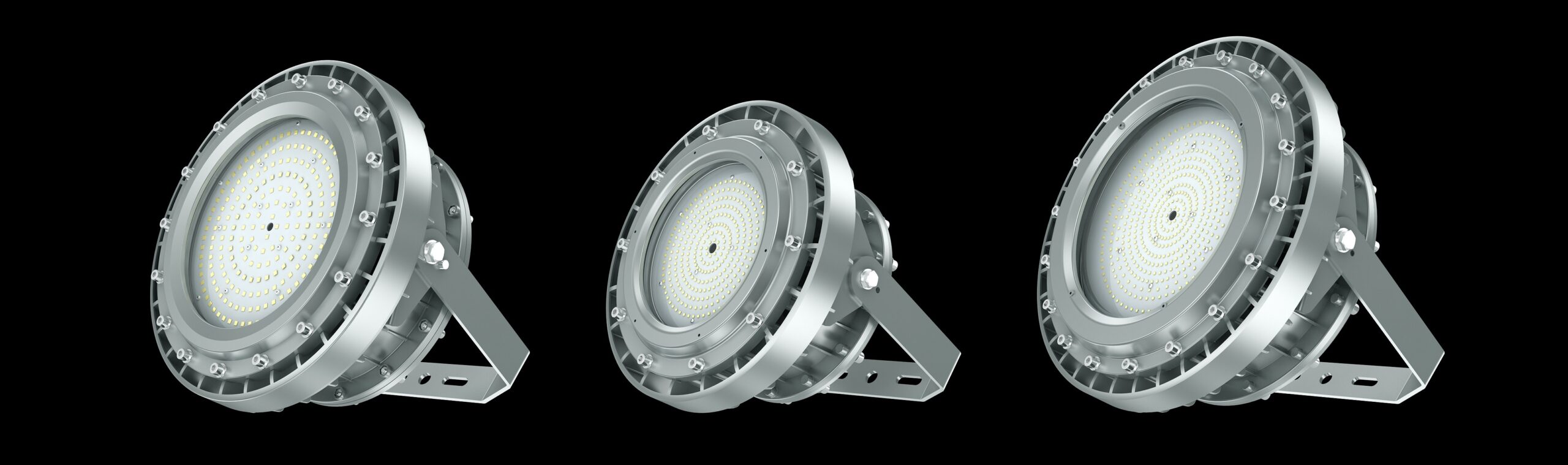

ATEX explosion proof LED lights 100 Watt, 8400lm, 40/ 60/ 90/ 120°, IP66, ,2200K-7000K
SKU: JNHB-ATEXCSeries1 (100W)
Features of the ATEX explosion proof LED lights 100 Watt, 8400lm, 40/ 60/ 90/ 120°, IP66, ,2200K-7000K
| Product SKU | JNHB-ATEXCSeries1 (100W) |
|---|---|
| Power Consumption | 100 |
| Input Voltage | 120-277/ 150-250VAC/ 12-48VDC |
| Input Frequency | 50/ 60Hz |
| Light Color | 2200K-7000K |
| LED Type | SMD |
| Total Lumens Output | 8400 |
| Luminous Efficacy (lm/W) | 140 |
| Power Factor | >0.95 |
| IK Impact Rating | IK08 (Glass cover) |
| Housing Colour | Grey |
| Housing Material | Copper free aluminium, tempered glass |
| Warranty Period (Years) | 5 |
| IP Rating | IP66 |
| Color Rendering Index | >70 |
| Beam Angle (°) | 40°, 60°, 90°, 120° |
| Dimming Capability | Non-dimmable |
| ATEX Standard | II 2 G Ex db llB T6...T3 Gb, II 2 D Ex tb IIC T80°C...T195°C Db |
| IECEx Standard | Ex db lIB T6...T3 Gb, Ex tb IIIC T80°C...T195°C Db |
| UL Standard | Class I, Division 2, Groups C, D/ Class I, Division 1, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III |
| Retilap Standard | Esquema 5 RETILAP |
| Fixture Shape | Round |
| Fixture Height (mm) | 254 mm |
| Fixture Width (mm) | 270 mm |
| Fixture Length (mm) | 406 mm |
| Net Weight (kg) | 14 kg |
| Temperature Class | T6 |
| Gas Group | IIC |
| Protection Type | Ex eb mb |
| Zone Classification | Zone 1 & 2 |
| IK Rating with Wire Guard | IKIK10 (with Wire Guard) (with wire guard) |
| Working Temperature Range | -20°C to +45°C |
| Working Humidity Range | 10-95% RH |
| Lifespan (Hours) | 80,000 hours |
| Product Dimensions (mm) | 254×270×406mm |
|---|---|
| Net Weight (kg) | 14 kg |
| Export Carton Dimensions (mm) | 479x470x345 |
| Products per Carton | 1 |
| Export Carton Gross Weight (kg) | 16 kg |
| Fixture Height (mm) | 254 |
| Fixture Width (mm) | 270 |
| Fixture Length (mm) | 406 |
Specification Details
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, wall mounting with junction box (90°)
